COOL CHAMBER WITH CABLE MANAGEMENT SYSTEM SUITABLE FOR CD TEST AT BELOW AMBIENT TEMPERATURE/23℃

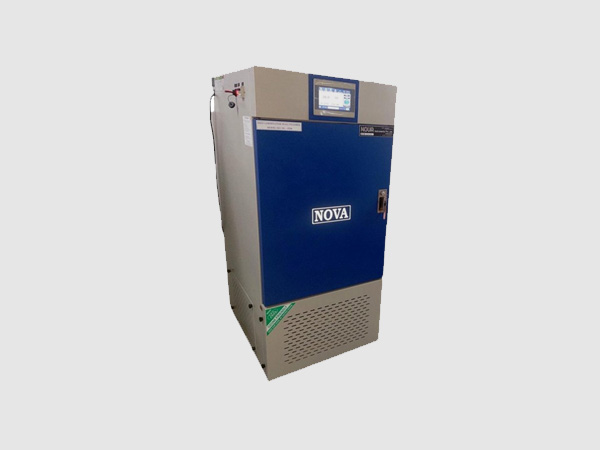

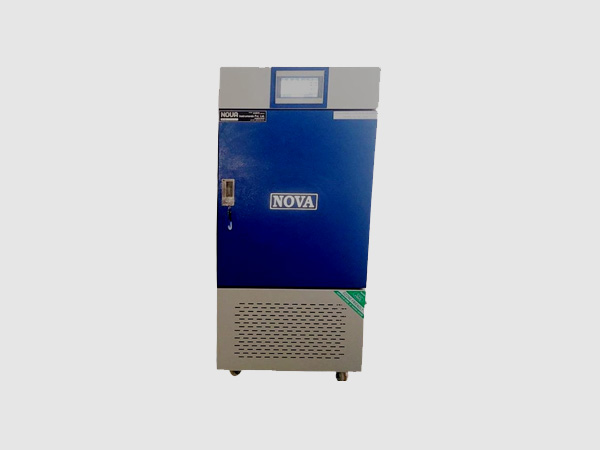

Cool Chamber for Cathodic Disbondment Tester
Cool Chamber for Cathodic Disbondment Tester
Features
PLC HMI MODEL
Inner chamber made of Stainless Steel 304
Outer chamber made of S.S 304 Duly Powder coated
Touch Screen HMI Display
Data Logging
Graph Indication
Provision to connect CD Tester from outside & CD Cell Sample from inside with specially designed interconnecting block cable system.
Temperature Range: 10℃ TO 50℃
Resolution: 0.1˚C
Accuracy: ±2℃ or Better
Forced Air Circulation for uniform temperature maintenance
Castor Wheel for easy movability
Capacity suitable for 8 Nos. CD Cell at a time
The chamber is specifically designed for coating quality test
Specimen are tested at different temperature for different period of time
This unit is specifically designed for maintain 23˚C ± 2˚C or better as per requirement of standard.
The inner chamber, working chamber is customized which is compatible for external input like CD
Tester channel wise input connection from outside and CD cell Sample connection from inside.
Complete with cable management system & cables for CD tester to Cool Chamber
(outside) & Cool Chamber to sample connection (inside)
